ACCESSORI PER LA SALDATURA > Nastri biadesivi bollini

B43966

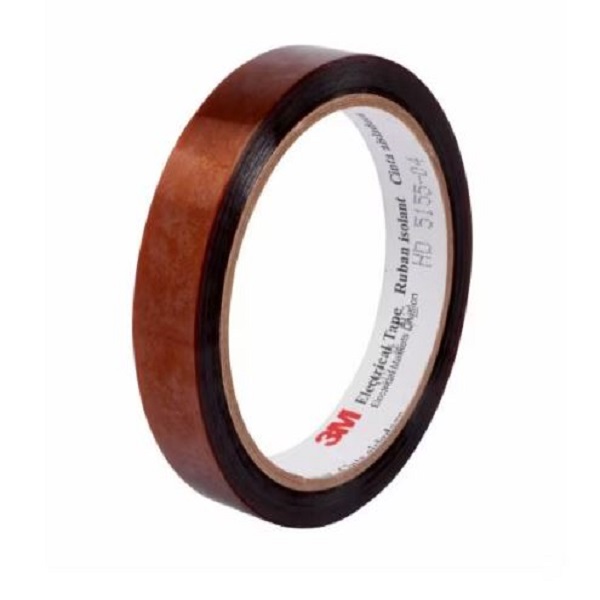

3M 92 Tape nastro adesivo in polyimide 25mm x 33m

Linea 3M

UM. NR

Disponibilità bassa

Generalmente disp. in 15 gg.

Qt.Min.Ord. 12

Contattaci:

02 4073747

Download PDF

Codici aggiuntivi

€ 71,00

IVA esclusa

Salva nei preferiti

Invia link

https://www.cepeitalia.it/wec/3m-92-tape-nastro-adesivo-in-polyimide-25mm-x-33m/f9e847ed7864125f599ed329cfab6f57/scheda_articolo/?forcelang=it

ALLEGATI

Documentazione Tecnica

scheda tecnica

SCHEDA PRODOTTO

3M 92 Tape nastro adesivo in polyimide 25mm x 33m

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 32 to 356 °F (0 to 180 °C).

3M™ Polyimide Film Electrical Tape 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.

Specifications
Adhesive Material: Thermosetting Silicone
Adhesive Type: Silicone
Application: Insulation
Backing (Carrier) Material: Polyimide Film
Backing (Carrier) Thickness (Metric): 0.025 mm
Brands: 3M™
Dielectric Strength: 7,500 V
Electrolytic Corrosion Factor: 1
Elongation at Break: 55 Percent
Insulation Resistance: > 10^6 megohms
Maximum Operating Temperature (Celsius): 180 ℃
Maximum Operating Temperature (Fahrenheit): 356 ℉
Minimum Operating Temperature (Celsius): -40 ℃
Overall Length (Imperial): 36 yd
Overall Length (Metric): 33 m
Overall Width (Imperial): 12 in, 15.5 in
Overall Width (Metric): 304.8 mm, 584.2 mm
Product Color: Amber
Tensile Strength (Metric): 53 N/cm
Total Tape Thickness without Liner (Imperial): 2.75 mil
Total Tape Thickness without Liner (Metric): 0.07 mm
