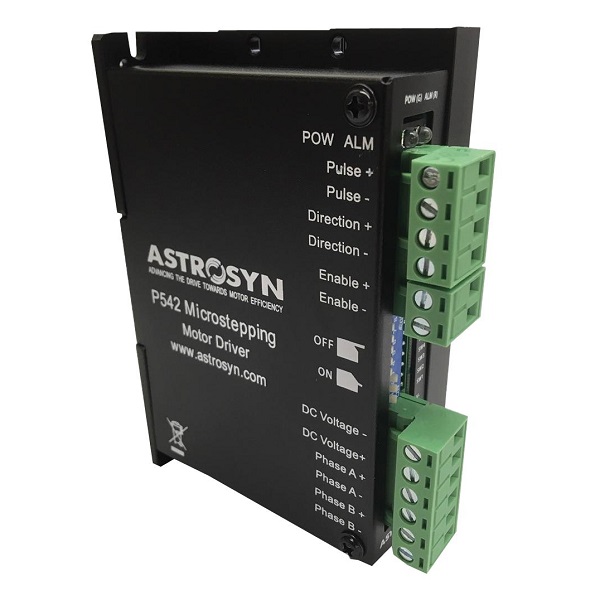

Astrosyn - P542A High Performance Microstepping Driver

B43738

ASTROSYN - P542A High Performance Microstepping Driver. Suitable for driving 2-phase and 4-phase hybrid stepping motors. Supply voltage 20V dc to 50V dc.

Linea ASTROSYN
UM. NR
Disponibilità bassa
Disponibilità bassa
Generalmente disp. in 7 gg.

Contattaci:

02 4073747
Genera PDF del prodotto Download PDF
€ 215,00
IVA esclusa
Salva nei preferiti Salva nei preferiti Invia linkInvia link

ALLEGATI

Manuale B43738
Download

SCHEDA PRODOTTO

Astrosyn - P542A High Performance Microstepping Driver

The P542A is a fully digital high performance microstepping driver based on the latest DSP technology.
It is suitable for driving 2-phase and 4-phase hybrid stepping motors.



Features of this Driver:

  • High Performance at low cost
  • Supply voltage 20V dc to 50V dc
  • Current selectable from 1.7A to 5.6A / phase (peak)
  • Inaudible chopping frequency
  • TTL compatible and optically isolated input signals
  • Automatic idle-current reduction
  • Mixed-decay current control for reduced motor heating
  • 16 Channel microstepping in decimal and binary
  • Suitable for 4, 6 or 8 lead motors
  • Step, Direction and Enable inputs
  • RS485 Compatible
  • Short-circuit, open-circuit, under / over voltage and over temperature protection.
