Circuit Technology Professional Repair Kit 230 VAC

A12734

Kit per la riparazione dei circuiti. Includes: adhesive-backed replacement lands and surface mount pads, a temperature-controlled bonding Iron and bonding tips, eyelets, circuit tracks, color agents, ESD safe carrying case.

UM. PZ
Disponibilità bassa
Disponibilità bassa
Generalmente disp. in 20 gg.
Qt.Min.Ord. 1

Contattaci:

1898,00
IVA esclusa

ALLEGATI

MSDS Color Agent
MSDS Circuit Frame/Bonding Film

SCHEDA PRODOTTO

Circuit Technology Professional Repair Kit 230 VAC

The Professional Repair Kit is the most complete and most versatile circuit board repair kit you'll find anywhere. It's the total package.
Includes unique replacement circuits that do not use messy liquid adhesives for bonding.
Includes a temperature-controlled Bonding Iron and Bonding Tips to delivers the optimal heat required for curing the adhesive bonding film on the backside of the replacement edge contacts.

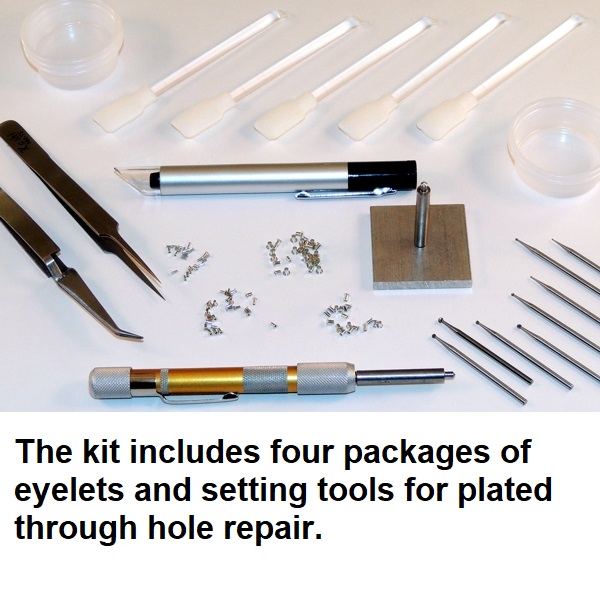

Includes eyelets and setting tools for plated through-hole repair, Circuit Tracks to repair damaged circuit traces, adhesives, and color agents for solder mask or baseboard repair all packed in a convenient ESD safe carrying case.
If you need to repair damaged circuit boards, the all-in-one Professional Kit is what you need.

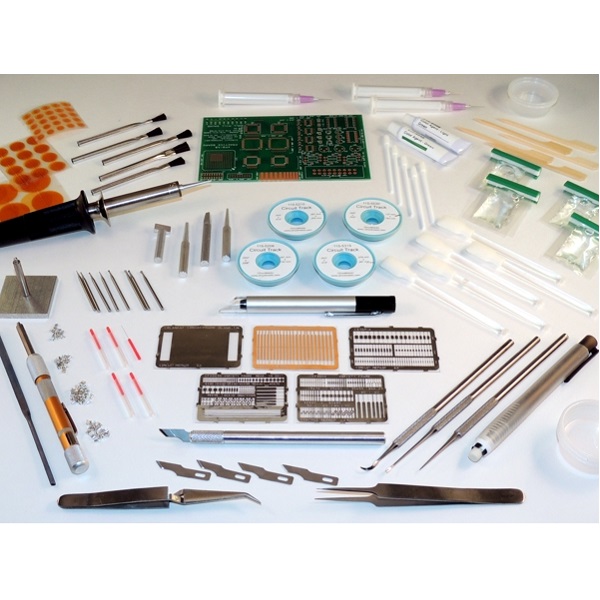

Professional Repair Kit Includes:

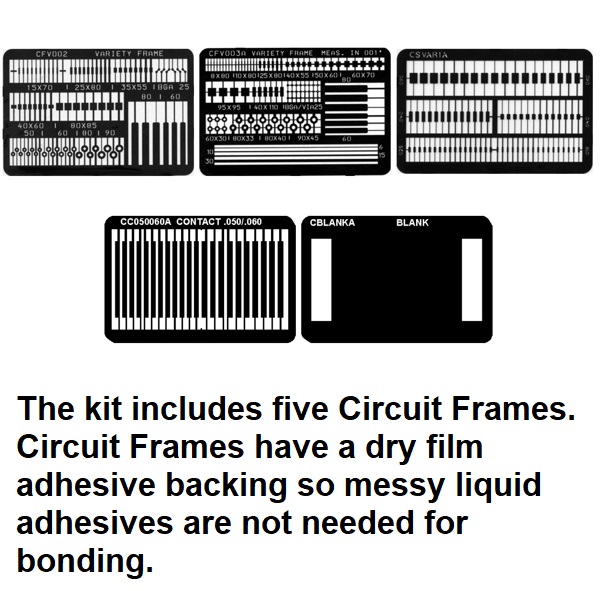

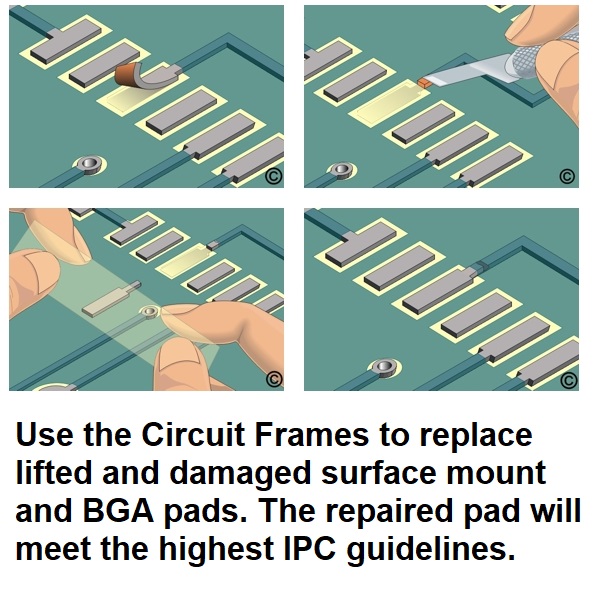

  • 1 Circuit Frame Blank - Bright Tin. Overall Frame Size: 2.25" x 1.50" (57 x 38 mm)



  • 1 Circuit Frame Variety - Bright Tin. Overall Frame Size: 2.25" x 1.50" (57 x 38 mm)



  • 1 Circuit Frame Variety - Bright Tin. Overall Frame Size: 2.25" x 1.50" (57 x 38 mm)



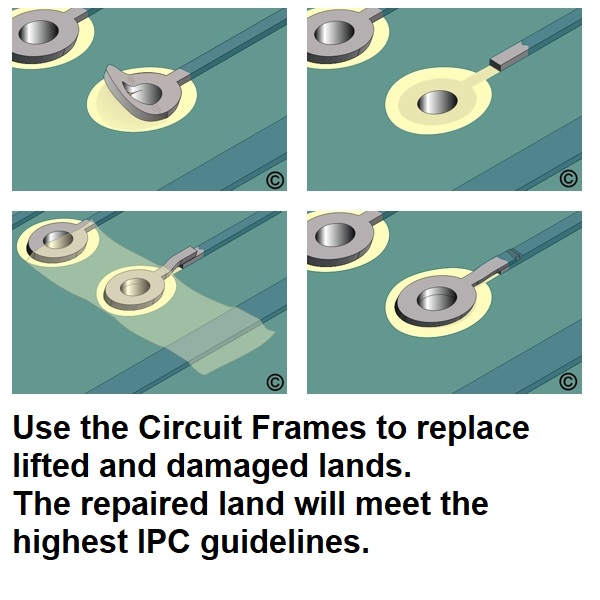

  • 1 Circuit Frame Lands .050"/.060" (1.27 mm/1.52 mm) - Bright Tin. Overall Frame Size: 2.25" x 1.50" (57 x 38 mm)



  • 1 Circuit Frame Variety - Bright Tin. Overall Frame Size: 2.25" x 1.50" (57 x 38 mm)



  • 1 Phenolic film adhesive .002" (.051 mm) thick. Overall Size: 2.25" x 1.50" (57 x 38 mm)



  • 1 Bonding Tip, Tapered



  • 1 Bonding Tip, .080" (2.03 mm) Diameter



  • 1 Bonding Tip, .120" (3.05 mm) Diameter



  • 1 Bonding Tip, .080" x .120" (2.03 mm x 3.05 mm)



  • 1 Practice Circuit Board



  • 1 Measuring Microscope Pen, 25X



  • 2 Setting Tool, Small. Designed for eyelets up to .045" inside diameter and .090" flange diameter.



  • 1 Tool Base. Designed for eyelets up to .045" inside diameter and .090" flange diameter.



  • 1 High carbon steel needle file perfect for all kinds of detail work.



  • 1 Abrader ideal for removing oxides and other contaminates from conductive surfaces prior to soldering, coating or plating.



  • 1 Tool Grip, Small. Designed for eyelets up to .045" inside diameter and .090" flange diameter.



  • Package or 5 assorted tips. Use with Bonding Iron included in the kit.



  • 1 Bonding Iron 230 VAC



  • 4 Circuit Bond Epoxy. Clear, superior strength epoxy in two-compartment plastic packages.



  • 5 Plastic cups used for mixing epoxies, for containing solutions and holding small items.



  • 5 Unique mixing sticks have a paddle shape on one end for mixing, and sharp pick on the opposite end.

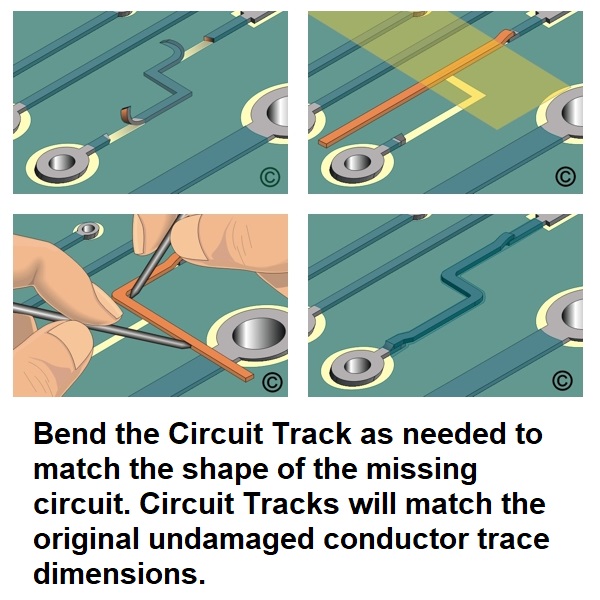

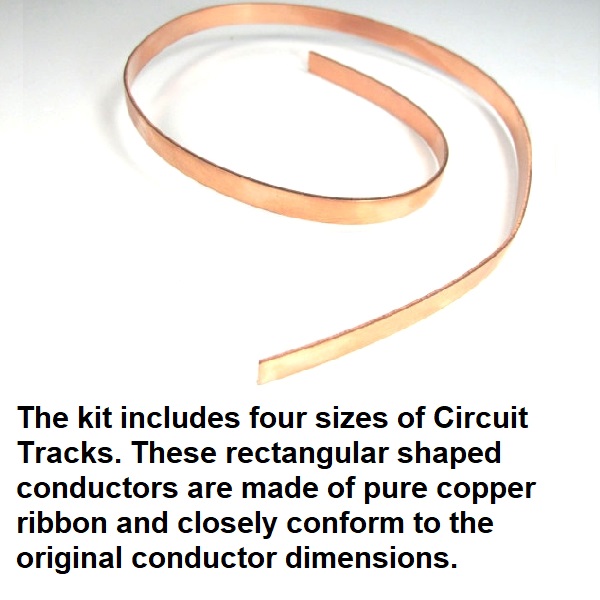

  • 1 Circuit Track, .002" x .006" (.051 mm x .152 mm). Rectangular shaped pure copper wire used to repair damaged conductors on circuit boards.



  • 1 Circuit Track, .002" x .010" (.051 mm x .254 mm). Rectangular shaped pure copper wire used to repair damaged conductors on circuit boards.



  • 1 Circuit Track, .003" x .015" (.076 mm x .381 mm). Rectangular shaped pure copper wire used to repair damaged conductors on circuit boards.



  • 1 Circuit Track, .005" x .030" (.127 mm x .762 mm). Rectangular shaped pure copper wire used to repair damaged conductors on circuit boards.



  • 1 Pack includes Ball Mill sizes #1/2 (.027" - .686 mm) through #7 (.083" - 2.108 mm).

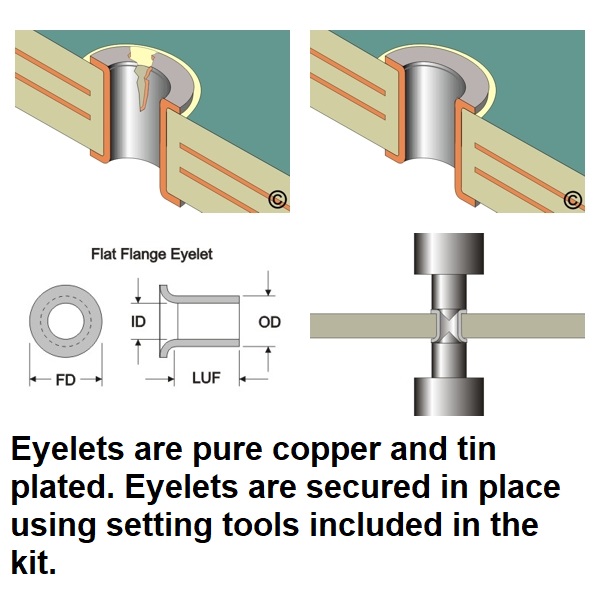

  • 25 Eyelet, Flat Flange.
Flange Type Flat
Metal Brass
Inside Diameter - ID .030"
Outside Diameter - OD .040"
Length Under Flange - LUF .093"
Flange Diameter - FD .060"
Dimensions are plus or minus .003"





  • 25 Eyelet, Flat Flange.
Flange Type Flat
Metal Copper
Inside Diameter - ID .036"
Outside Diameter - OD .046"
Length Under Flange - LUF .093"
Flange Diameter - FD .076"
Dimensions are plus or minus .003"



  • 25 Eyelet, Flat Flange.
Flange Type Flat
Metal Copper
Inside Diameter - ID .045"
Outside Diameter - OD .059"
Length Under Flange - LUF .090"
Flange Diameter - FD .090"
Dimensions are plus or minus .003"



  • 25 Eyelet, Flat Flange.
Flange Type Flat
Metal Copper
Inside Diameter - ID .057"
Outside Diameter - OD .067"
Length Under Flange - LUF .095"
Flange Diameter - FD .111"
Dimensions are plus or minus .003"

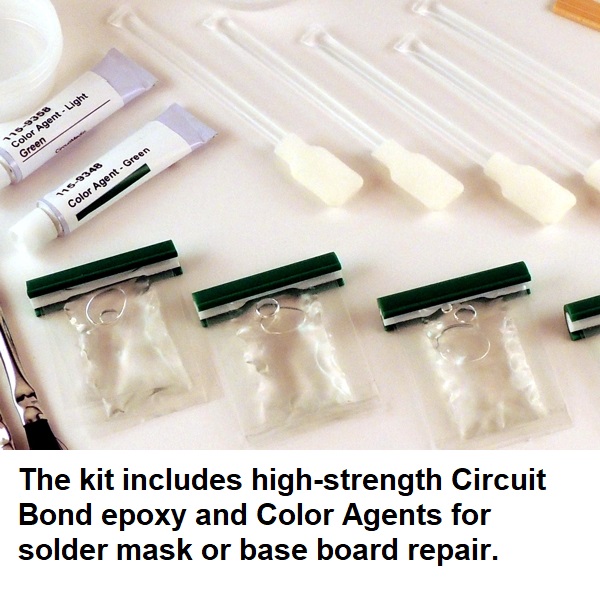

  • 1 Color Agent, Green  in 1 oz. (29 ml) collapsible metal tubes. Use to tint epoxy for solder mask and base board repair.



  • 1 Color Agent, Light Green in 1 oz. (29 ml) collapsible metal tubes. Use to tint epoxy for solder mask and base board repair.



  • 5 Foam Swab, 3/16" Tip



  • 5 Cleaning Brushes



  • 5 Foam Swab, Large



  • Pkg/120 High Temp Tape Discs made of polyimide film with 1.5 mil of silicone adhesive that will not leave any residue. They can withstand temperatures of up to 500°F (260°C). Discs are .25" (6.35mm) diameter.



  • Pkg/60 High Temp Tape Discs made of polyimide film with 1.5 mil of silicone adhesive that will not leave any residue. They can withstand temperatures of up to 500°F (260°C). Discs are .50" (12.70 mm) diameter.



  • 1 Sharp dental style probe.



  • 1 Wire Guide.



  • 1 Hardened stainless steel tip for scraping solder mask and removing defects.



  • 1 Knife with #16 Blades (narrow tipped blade has the ideal profile for working on circuit boards) for precise cutting, scraping and trimming.



  • 5 Super-sharp probes. Probe Tip - .006" (.15 mm) Diameter x .50" (12.7 mm) long.



  • 1 Tweezer, Point Tip for precision work.



  • 1 Tweezer, Self locking stainless steel tweezers provide hands-free clamping force
