  1.  MATERIALE PER SALDATURA > Flussanti

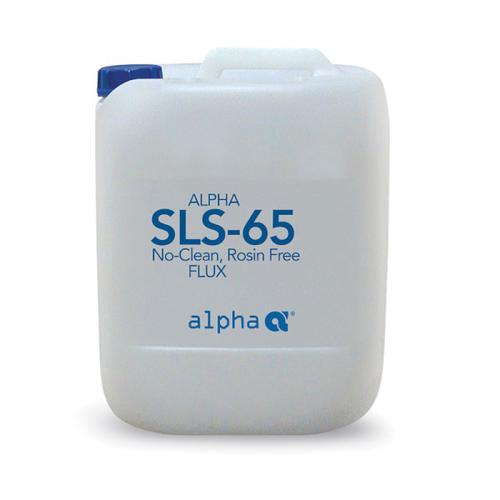

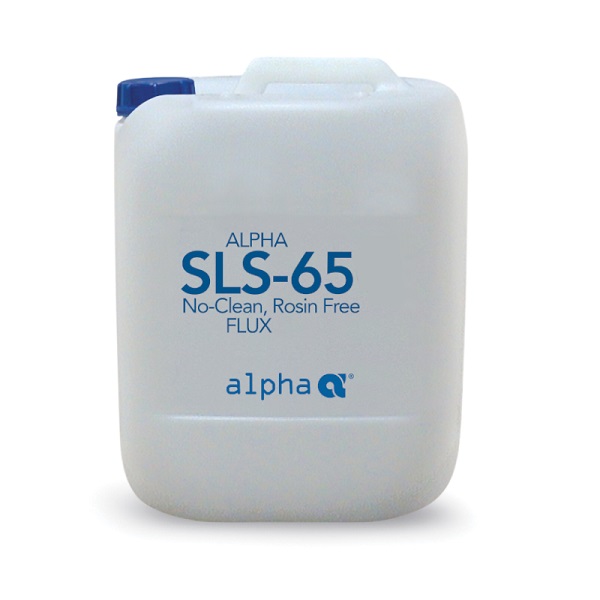

Flussante Alpha SLS 65 flux tanica 25lt - trasp. in ADR

B43900

Flussante Alpha SLS 65 flux tanica 25lt UN1993,LIQUIDO INFIAMMABILE, N.O.S.(ISOPROPYL ALCOHOL), 3,II,((D/E)

Linea ALPHA WIRE
UM. PZ
Disponibilità bassa
Disponibilità bassa
Generalmente disp. in 8 gg.
Qt.Min.Ord. 1

Contattaci:

02 4073747
Genera PDF del prodotto Download PDF
€ 359,00
IVA esclusa
Salva nei preferiti Salva nei preferiti Invia linkInvia link

ALLEGATI

schdea di sicurezza
Download
scheda tecnica
Download

SCHEDA PRODOTTO

Flussante Alpha SLS 65 flux tanica 25lt - trasp. in ADR

ALPHA SLS-65 Flux 25 Litre was specifically developed to eliminate the tendency for solder balling and solder bridging-two defects which are normally associated with the use of the chip wave. Of all low solids (< 4% solids), no-clean fluxes, SLS-65 exhibits the lowest tendency for solder ball generation over a wide variety of solder masks. SLS-65 should be considered for use by any assembler who has board designs which are sensitive to solder bridging, performs pin testing, and whose specification requires an extremely low frequency of solder balls.

ALPHA SLS-65 is an active, low solids, no-clean flux. It is formulated with a proprietary mixture of organic activators. Several proprietary additives are formulated into SLS-65 which act to reduce the surface tension between the solder mask and the solder; thereby, dramatically reducing the tendency of solder ball generation. The formulation of SLS-65 is also designed to be more thermally stable; thereby, reducing the occurrence of solder bridging.

Key features:
Thermally stable activators provide the lowest solder bridging in a low solids, no-clean flux.
Reduces the surface tension between solder mask and solder to provide the lowest solder ball frequency of any low solids, no-clean flux.
Very low level of non-tacky residue to reduce interference with pin testing and exhibit no visible residue.
Cleaning is not required which reduces operating costs.
Bellcore Compliant for long term electrical reliability.
Supplied in 25 Litre containers
