HumiSeal 1B31 Acrylic Conformal Coating Aerosol 400ml

B10300

HumiSea 1B31 Acrylic Conformal Coating Aerosol 400ml Saldatura - accessori, conformal coating.

Linea HUMISEAL

UM. PZ

Disponibilità bassa

Generalmente disp. in 70 gg.

Qt.Min.Ord. 12

Contattaci:

02 4073747

Download PDF

Codici aggiuntivi

Vostro codice

C352-1B31

CEPE FORNITURE INDUSTRIALI SRL

Chiama per il prezzo

Salva nei preferiti

Invia link

https://www.cepeitalia.it/wec/humiseal-1b31-acrylic-conformal-coating-aerosol-400ml/76a8b2a3538b056fbfc667c4371f068b/scheda_articolo/?forcelang=it

ALLEGATI

Documentazione Tecnica

Certificato Reach 1b31 Aerosol

Certificato RoHs 1b31 Aerosol

Scheda tecnica 1b31 Aerosol

Scheda di sicurezza 1B31 Aerosol

SCHEDA PRODOTTO

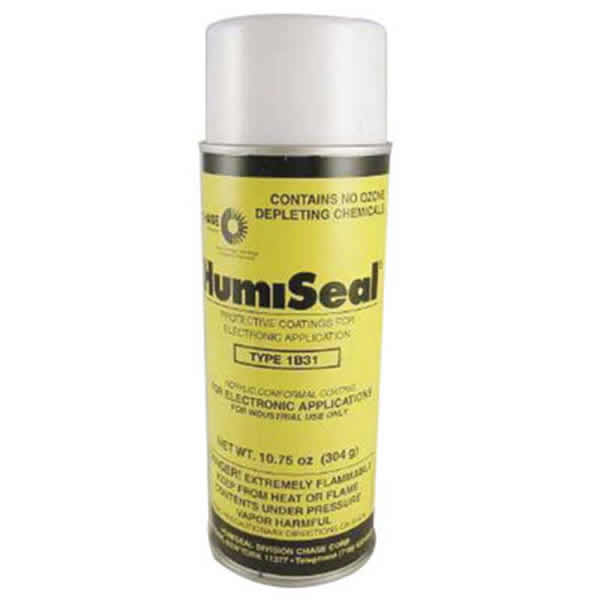

HumiSeal® 1B31 Aerosol 360ml

HumiSeal® 1B31 Aerosol is a fast drying, clear acrylic conformal coating intended for use on printed circuit assemblies. The product is conveniently dispensed from aerosol cans utilizing an environmentally safe, non-ODP propellant and contains UV tracer for inspection under black light. The coating may be removed chemically using HumiSeal® Stripper 1080. HumiSeal® 1B31 Aerosol is RoHS Directive 2002/95/EC compliant.

Application of Humsieal® 1B31 Aerosol
1. Allow 48 hours minimum to reach room temperature before using cans stored or received during cold weather.
2. When applied in conditions of high ambient humidity, blushing (cloudy white film) may appear. Heating the coated assembly in an oven for 1/2 hour at 76°C eliminates this condition.
3. Surface must be cleaned of dirt, wax, grease, flux residues and all similar contaminants for successful application of coating.
4. Mask areas not requiring coating from overspray using suitable non-silicone masking methods or materials.
5. Shake can vigorously before using and repeat frequently during use.
6. Best results are obtained by spraying from a distance of 30 – 40 cm in light even coats. A film thickness of 25 – 75 microns is sufficient to provide protection.
7. To clean nozzle after use, hold can upside down, then press nozzle for a few seconds.

Caution
Application of HumiSeal® Conformal Coatings should be carried out in accordance with local and National Health and Safety regulations.
The solvents in HumiSeal® Conformal Coatings are flammable. Material should not be used in presence of open flame or sparks. Use only in well-ventilated areas to avoid inhalation of vapours or spray. Avoid contact with skin and eyes.
