Kester Wire 24-6337-001 Solder, 010", Sn63 Pb37

A15887

Kester 44 Flux-Cored Wire, Rosin Core, Leaded, Sn63 Pb37, 3.3%, 0.010 in (0.25mm). saldatura - accessori, stagno.

Linea KESTER
UM. PZ
Disponibilità bassa
Disponibilità bassa
Generalmente disp. in 30 gg.

Contattaci:

02 4073747
Genera PDF del prodotto Download PDF
Codice costruttore
24-6337-0001
Chiama per il prezzo
Salva nei preferiti Salva nei preferiti Invia linkInvia link

ALLEGATI

A15887_TDS
Download
A15887_MSDS
Download

SCHEDA PRODOTTO

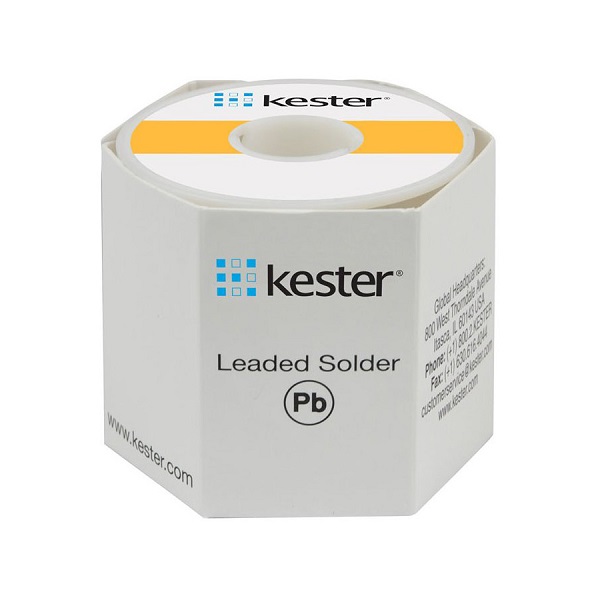

Kester Wire 24-6337-001 Solder, 010", Sn63 Pb37

Kester 44 Flux-Cored Wire Product Overview:

Alloy: Sn63Pb37

Core Size: 66

Flux: 3.3%

Kester 44 Rosin Flux is an activated rosin formula for use in flux-cored solder wire. 44 has virtually dominated the field of activated rosin core solders for well over four decades. An outstanding performance feature of this flux is the “instant-action” wetting behavior. The high mobility and fast-spreading action of this flux results in more reliable production line soldering. 44 is classified as ROM1 per J-STD-004.

Performance Characteristics:

High activity RA formulation
Excellent solderability to a wide range of metalizations
Industry standard RA cored wire for decades
Classified as ROM1 per J-STD-004
Cleaning

The 44 series possesses excellent fluxing ability. The flux residues are non-corrosive, non-conductive and do not require removal in most applications under normal conditions of use. IPA will not clean the residues off the surface of the circuit board after the soldering process. If removal is required, a saponifier or cleaning agent specifically designed to clean a no-clean flux is required to clean the residues.



SpecificationsBrand: Kester
Alloy: Sn63Pb37
Diameter: 0.010 in (0.25 mm)
Flux Type: Rosin Core
Series: 44 Series
Package Type: Spool
Flux %: 3.3 %
Lead Type: Leaded
Core Size: 66
Halogen Content: Halogen
Weight: 1 lb (0.45 kg)
