Kester Wire Solder, 015", Sn96.3 Ag3.7, #66/285, 1 lb , Cepeitalia

MATERIALE PER SALDATURA > Stagno in filo

A15869

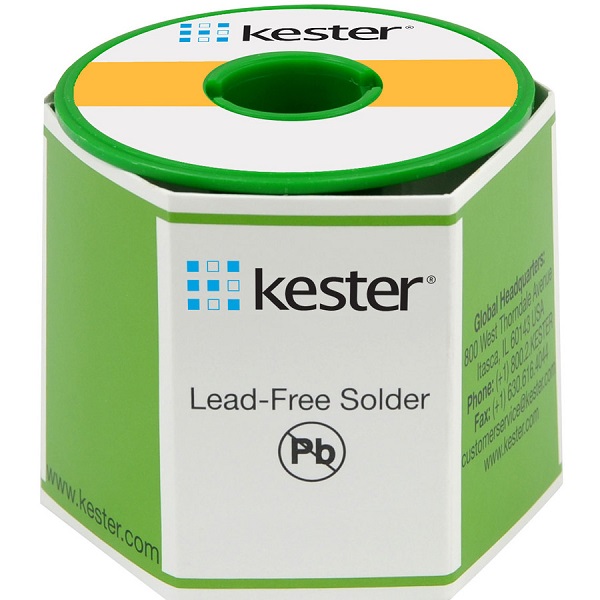

Solder Wire, Rosin Core, Lead Free, Sn96.3Ag3.7, 3.3%, 0.015 in (0.40 mm), Core Size: 66, 285 Series, Weight: 1 lb (0.45 kg)

Linea KESTER

UM. PZ

Disponibilità bassa

Generalmente disp. in 15 gg.

Contattaci:

02 4073747

Download PDF

Codici aggiuntivi

Codice costruttore

24-7050-9703

Chiama per il prezzo

Salva nei preferiti

Invia link

https://www.cepeitalia.it/wec/kester-wire-solder-015-sn963-ag37-66-285-1-lb/6854b89694d75c2ab20411cf0cab71b0/scheda_articolo/?forcelang=it

ALLEGATI

Documentazione Tecnica

A15869_TDS

A15869_MSDS

SCHEDA PRODOTTO

Solder Wire, Rosin Core, Lead Free, Sn96.3Ag3.7, 3.3%, 0.015 in (0.40 mm), 285 Series

Kester 285 Mildly Activated Rosin Flux is classified as Type ROL0 flux under IPC J-STD-004. This flux was formerly classified as Type RMA per QQ-S-571. 285 consists of high quality, purified rosin to which a synergistic combination of activating agents has been incorporated. The fluxing ability of 285 is much greater than ordinary mildly activated rosin fluxes and is comparable to fully activated rosin fluxes. 285 has been developed for use in the electronic industry where difficult assemblies are to be soldered, but process requirements stipulate use of a mildly activated rosin flux.

Performance Characteristics:

Industry Standard RMA cored wire
Compatible with leaded and lead-free alloys
Classified as ROL0 per J-STD-004

RoHS Compliance

This product meets the requirements of the Restriction of Hazardous Substances (RoHS) Directive, 2011/65/UE for the stated banned substances. (Applies only if this core flux is combined with a lead-free alloy).

Cleaning

285 flux residues are non-corrosive, non-conductive and do not require removal in most applications
