SCHEDA TECNICA

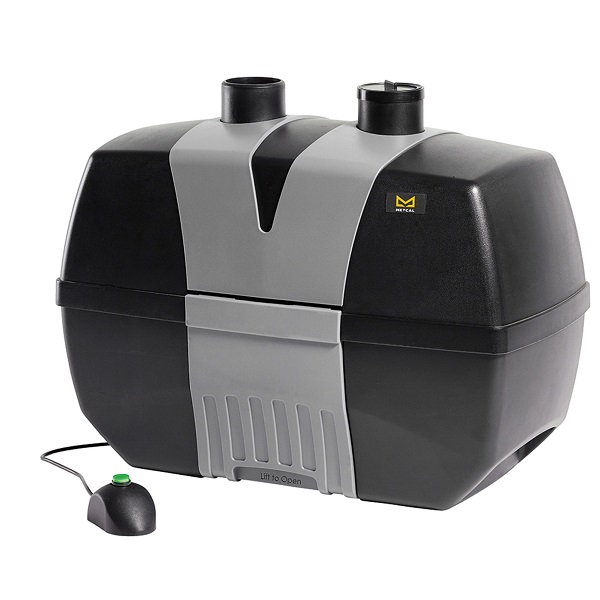

BVX 200 Fume Extraction System

The BVX-203 is a two operator, Pre-Deep Bed-HEPA-Gas volume extraction system designed to be used adjacent to the workbenches.

Fan Capacity: 250 m3/h (150 cfm)
Flow Rate (With Filter): 2 x 75m3/h (45 cfm)
Static Pressure (suction force): 850 Pa (3.5" WC)
HEPA Efficiency: 99.97 % at 0.3 micron
Noise Level: < 55 dBA
Dimensions (W x D x H): 508 x 254 x 388 mm (20" x 10" x 15.3")
Weight : 9 kg ( 20 lb)
Certification/Marking: UL, CSA, CE
Power Cord Length: 183 cm, 18/3 SJT

Features and Benefits
• Two station design for dynamic fume extraction
• New brushless motor, quiet operation
• Complete portability, placed under or next to the bench-top
• Fitted with 2x 50mm (2") ∅ arms or 1x 63mm (2.5") ∅ arm
• Main filter has a HEPA efficiency of 99.97% at 0.3 Micron, and an activated carbon filter to remove additional gases
• Audible alarm informs operators when filters need replacing
• Easy access on/off remote switch

Product Comprise of
• BVX-201 Unit
• Set of Pre-filters (FP-BVX200, pack of 5)
• Gas filter (FG-BVX200 Deep Bed Gas Filter)
• Remote power switch
• No arms included
