Metcal SFP-CH25 - Punta a cacciavite 2.5 mm

A17510

Metcal SFP-CH25 - Punta a cacciavite 2.5 mm

Linea METCAL

Attribute	Value
Model Number	SxP
Tip Shape	Chisel
For Use With	MFR-H1-SC2
Tip Size	2.5 mm
Tip Series	SFP
Tip Angle	30°

UM. PZ

Disponibilità bassa

Generalmente disp. in 15 gg.

Contattaci:

02 4073747

Download PDF

Codici aggiuntivi

Codice costruttore

SFP-CH25

Vostro codice

1AAN001587

LEONARDO S.P.A DIVISIONE ELETTRONICA ETN

€ 17,20

IVA esclusa

Salva nei preferiti

Invia link

https://www.cepeitalia.it/wec/metcal-sfp-ch25-punta-a-cacciavite-25-mm/7453c36ec95efac92af06d034441b5e3/scheda_articolo/?forcelang=it

SCHEDA PRODOTTO
POTREBBERO INTERESSARTI ANCHE...

SCHEDA PRODOTTO

Metcal SFP-CH25 - Punta a cacciavite 2.5 mm

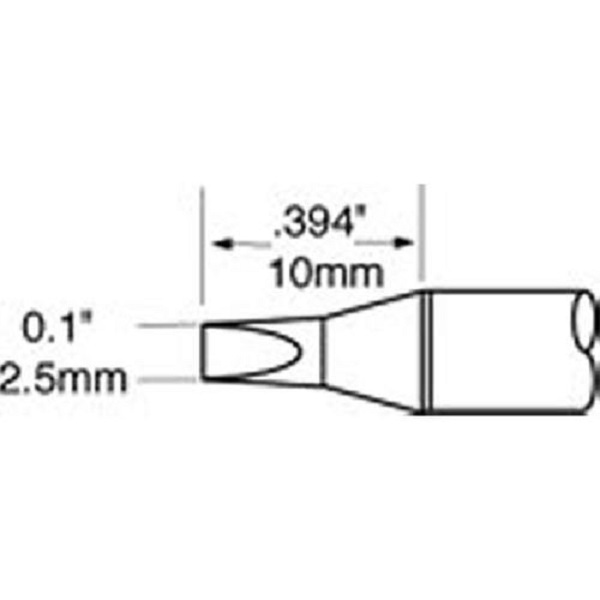

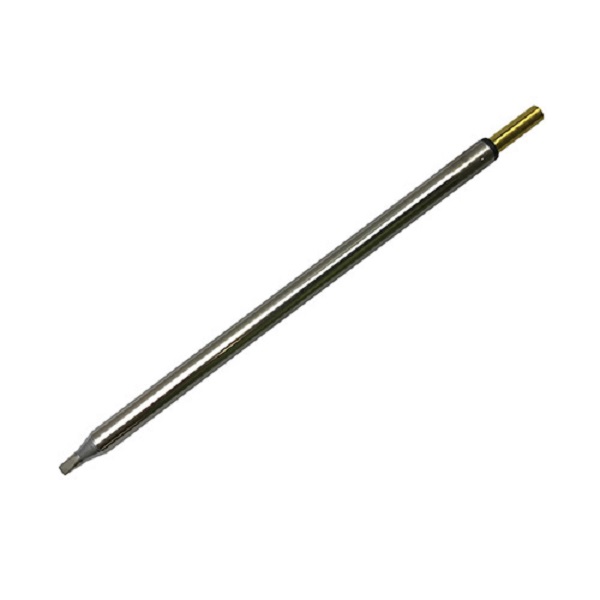

Cartridge Tip for Soldering/Rework Handpiece Dimension: 0.10 (2.5mm); Style: Chisel 30°

SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems. The second letter in the part number designates the temperature series. The SFP-series are nominally 390 ˚C. Metcal recommends the SFP-series for the majority of applications. However, the family also offer a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications. STP-series are nominally 330 ˚C for light load application. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.
