Metcal SFP-CHL20 - Punta a cacciavite 2.0 mm

A17513

Metcal SFP-CHL20 - Punta a cacciavite 2.0 mm

Linea METCAL
UM. PZ
Disponibilità bassa
Disponibilità bassa
Generalmente disp. in 15 gg.

Contattaci:

Codice costruttore
SFP-CHL20
21,55
IVA esclusa

SCHEDA TECNICA

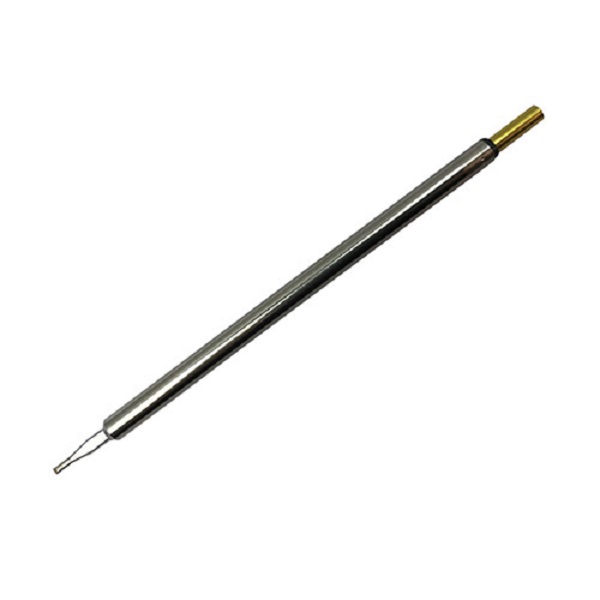

Metcal SFP-CHL20 - Punta a cacciavite 2.0 mm

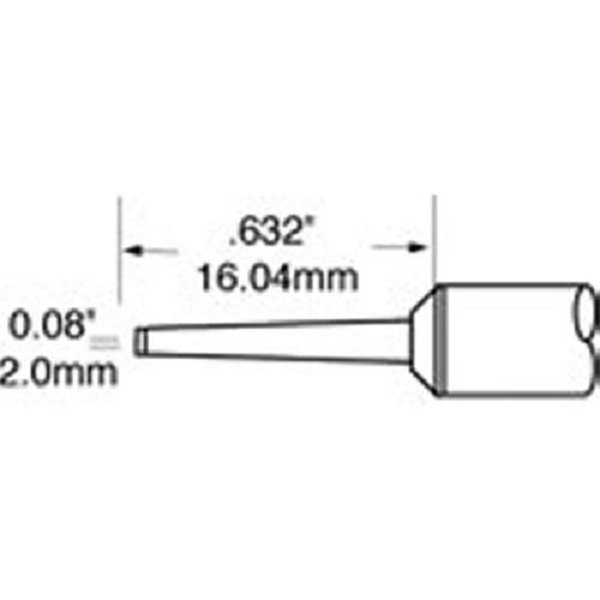

Cartridge Tip for Soldering/Rework Handpiece Dimension: 0.08 (2.0mm); Style: Chisel 30°Long

SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems. The second letter in the part number designates the temperature series. The SFP-series are nominally 390 ˚C. Metcal recommends the SFP-series for the majority of applications. However, the family also offer a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications. STP-series are nominally 330 ˚C for light load application. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.



Specifications

Attribute Value
Tip Shape Chisel
Model Number SxP
For Use With MFR-H1-SC2
Tip Size 2 mm
Tip Series SFP
Tip Angle 60°
