Metcal SFP-CN04 - Punta conica 0.4 mm

A17514

Metcal SFP-CN04 - Punta conica 0.4 mm

Linea METCAL
UM. PZ
Disponibilità bassa
Disponibilità bassa
Generalmente disp. in 15 gg.

Contattaci:

Codice costruttore
SFP-CN04
16,45
IVA esclusa

SCHEDA TECNICA

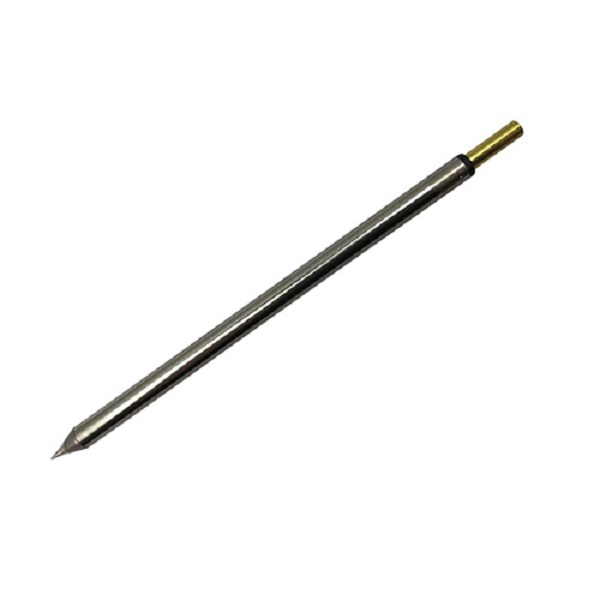

Metcal SFP-CN04 - Punta conica 0.4 mm

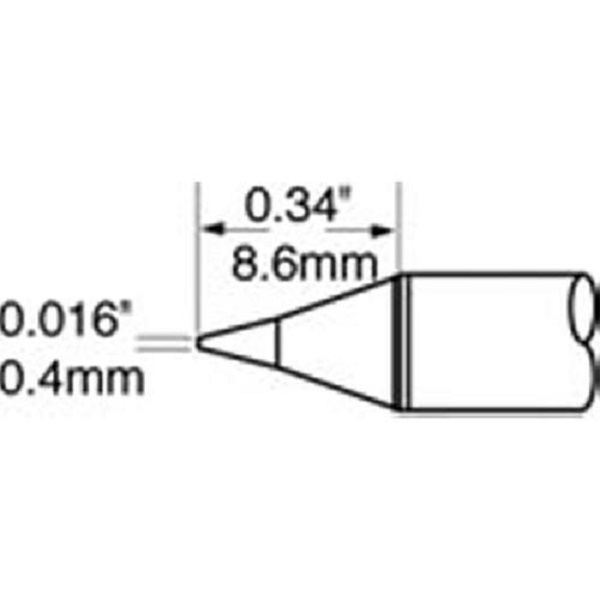

Cartridge Tip for Soldering/Rework Handpiece Dimension: 0.016 (0.4mm); Style: Conical

SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems. The second letter in the part number designates the temperature series. The SFP-series are nominally 390 ˚C. Metcal recommends the SFP-series for the majority of applications. However, the family also offer a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications. STP-series are nominally 330 ˚C for light load application. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.



Features and Benefits
SxP-Solder Tip Cartridges are the standard soldering tip range for the Metcal MFR-1110, MFR-2210 and MFR-1351-series soldering systems. The second letter in the part number designates the temperature series. The SFP-series are nominally 390 ˚C. Metcal recommends the SFP-series for the majority of applications. However, the family also offer a higher temperature series designated SCP, nominally 450 ˚C, for high temperature and thermally demanding applications. STP-series are nominally 330 ˚C for light load application. Can be used with leaded and lead-free solder. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.



Specifications

Attribute Value
Model Number SxP
Tip Shape Conical
For Use With MFR-H1-SC2
Tip Size 0.4 mm
Tip Series SFP
