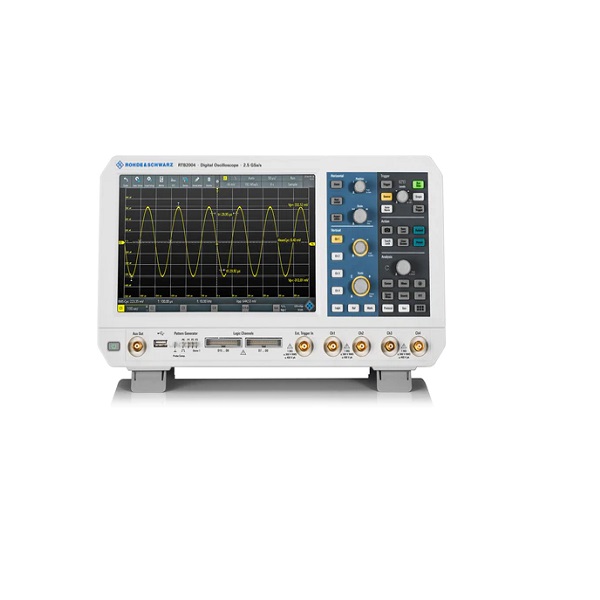

RTB2K-COM4 Rohde&Schwarz Oscilloscopio 300MHz
Rohde & Schwarz RTB2K-COM4 MSO Oscilloscope 300MHz 4 Channels including all options available. It is characterized by a 10bit digital analogue converter (ADC), a 10.1 "touch screen display and a 10Mpts memory depth.
The packaging of the R&S RTB2K-COM4 contains:
- digital oscilloscope 70MHz 4 channels
- 300MHz bandwidth upgrade (R&S RTB-B243)
- 4 passive probes model R&S RT-ZP03 (300 MHz, 10 MHz, 10:1/1:1, 10 MΩ/1 MΩ, 400 V, 12 pF/82 pF)
- power cable
- Mixed Signal Option (R&S RTB-B1)
- 2 logic probes model R&S RT-ZL03
- trigger and decoding I2C/SPI (R&S RTB-K1)
- trigger and decoding UART/RS232 (R&S RTB-K2)
- trigger and decoding CAN/LIN (R&S RTB-K3)
- History and Segment Memory (R&S RTB-K15)
- ARB Generator (R&S RTB-B6)
- Frequency response analysis (Bode plot) - (R&S RTB-K36)
Key facts:
- Bandwidth: 70/100/200/300 MHz
- Sample rate: up to 2.5 Gsample/s
- Memory depth: up to 20 Msample
- ADC resolution: 10 bit
- Display: 10.1" capacitive touchscreen
General description:
Power of ten (10-bit ADC, 10 Msample memory and 10.1" touchscreen) combined with smart operating concepts make the R&S®RTB2000 digital oscilloscope the perfect tool for university laboratories, for troubleshooting embedded designs during development and for production and service departments.
