Features:
• Compact Design
• Self-balancing DOCC™ Technology
• Radical Emitter Design
• 24VDC Input

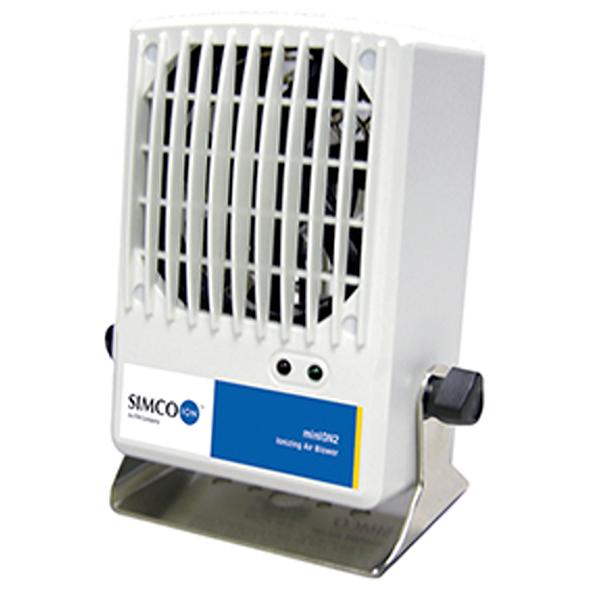

The minION2 has been designed to control electrostatic charges in sensitive electronics assembly and automated tool applications requiring stable operations with fast discharge time performance. The minION2 is built to deliver big performance and reliability in a compact package with a practical feature set.
A combination of unique, patented features incorporated in this product make it possible for minION2 to deliver industry-leading performance. Simco steady-state DC corona ion technology provides patented control circuitry or DOCC™ technology to deliver consistent performance. Performance is enhanced by use of patented radical ion emitter design. The unique geometry and airflow control provides performance meeting the demands of electronics and critical assembly manufacturers with corona ion technology.
MinION2 uses a modular wiring system that allows power delivery by daisy chaining up to 3 units on one standard, modular power supply. Hard wiring of power can be accommodated by use of a terminal block located on the back of the unit. The terminal block also features a relay contact output of the fault signal to enable remote monitoring.
Optional clamp-on spring arm stand is available for applications requiring an elevated position or to save work surface space.
Specifications:
Performance:
Discharge time: 2.0 seconds; (center position, high fan speed)
Offset voltage: 0±10V
Operational:
Ion balance: Auto-adjust DOCC technology
Input power: 24VDC, 250mA, 6W
Operating temperature: 0°C to 50°C (32°F to 122°F)
Mechanical:
Emitters: 6 - stainless steel
OFF/ON: Fan position switch
Fan speed: Recessed potentiometer
Indicator: Green-power, Red-fault
Connectors: Two RJ-11/power; Plug type terminal block
Dimensions: 3 7/8" x 5 3/8" x 2 3/8"
Weight: 1.1 lbs.
Color: white
Slave unit (no power supply)
