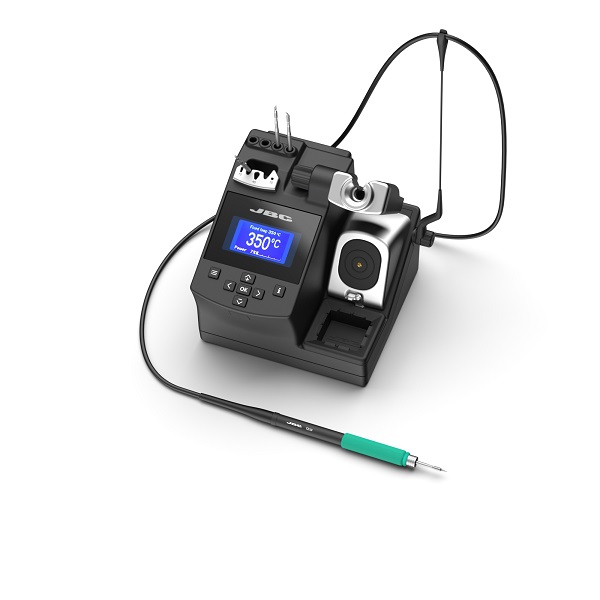

Stazione Saldante JBC CD-2SQF con saldatore T210 SENZA PUNTE
This station is ideal when working on populated PCBs or under a magnifying glass.
It uses T210 Precision Handle, the perfect handpiece for accuracy soldering jobs with medium power requirements. T210 works with C210 Cartridge Range.
This station includes:
• Fast and easy configuration of the station thanks to the 7-key keypad.
• Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector.
• Connectivity to JBC Fume Extractor (connector RJ12).
It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, Sleep & Hibernation Modes help to extend the life of tips.
PRODUCT COMPOSITION:
1 CD Soldering Station
1 T210 Precision Handle(cartridge not included)
SPECIFICATIONS
Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
CONNECTIVITY USB-B Software PC / Firmware update
Equipotential bonding Optional connection to EPA
RJ12 Connector
Earthing Fuse F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./ resist. Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak power 40 W - 23.5 V
Ambient operating temp. 10 to 50 ºC / 50 to 122 ºF
DIMENSIONS AND WEIGHT
Compact Stations 170 x 176 x 145 mm / 2.70 kg.
6.69 x 6.93 x 5.71 in / 5.95 lb.
Package 234 x 234 x 258 mm / 3.27 kg.
9.21 x 9.21 x 10.16 in / 7.21 lb.
