Zestron Resin test Kit - 100ml , Cepeitalia

B44381

Zestron Resin test Kit - 100ml - Zestron 5404-0000

Linea ZESTRON

UM. PZ

Disponibilità bassa

Generalmente disp. in 30 gg.

Contattaci:

02 4073747

Download PDF

Codici aggiuntivi

€ 794,00

IVA esclusa

ALLEGATI

SCHEDA PRODOTTO

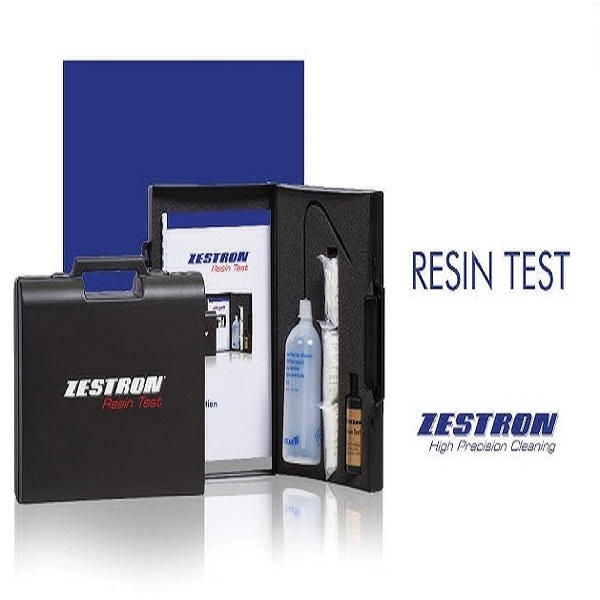

Zestron Resin test Kit - 100ml

Critical resin residues, which cause poor adhesion of conformal coatings and delamination effects can be localized during the production and removed by a cleaning step. Thus the critical resin amount of <40 μg/cm² (258.06 μg/sq in) according to J-STD 001 can be met.

This test complements analytical methods such as Ionic Contamination Measurement and the ZESTRON Flux Test (detection of activators/acids).

Advantages of the ZESTRON Resin Test:
Localized detection of resin based residues on electronic assemblies
Quick and easy test method. No extensive training required
No specific test equipment needed
No additional floor space requirements
No investment costs
Can be used throughout the facility
On-site sampling inspection during production
Low cost per tested part
Application:
Detection of resin-based residues on pcb assemblies
On-site sampling inspection during production
