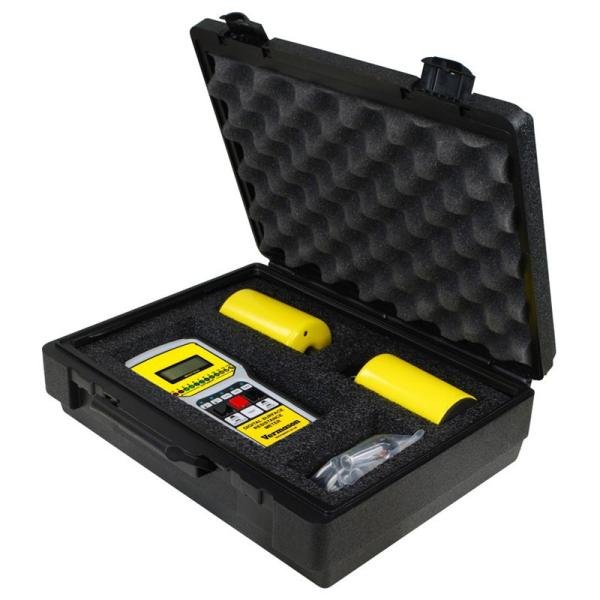

VERMASON SURFACE RESISTANCE METER KIT

• NEW Enclosure with Rubber Grip Edges

Thinner and narrower design is easier to hold and provides protection from drops.

• NEW Quick Check Button

Enable this switch to perform quick resistance measurements without the 15-second period for temperature and humidity measurements.

• NEW Battery Compartment

Easy-to-access compartment without the need for tooling or probes.

• Digital Compliance Verification Surface Resistance Meter Kit*

Measures resistance point-to-point(Rtt) or surface to ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and other documents.

• Resistance Range: Greater Than 1.0 x 103 ohms to Less Than 1.0 x 1012 (+/-10% Accuracy)

Determines if a surface is dissipative, conductive, or insulative for ESD control applications in electronics manufacturing or handling environments.

• Under Load Test Voltages (10V or 100V ±5%)

Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification.

• Selectable Test Voltage

Switches to appropriate test voltage (10V for tests <1 x 106 or 100V for tests >1 x 106) in AUTO mode or may be fixed to at 10V in HOLD mode.

• Ohm Values are Expressed with a Digital Mantissa and LED Exponent

Provides an easy to read and accurate measurement.

• Pre-set 15 Second Electrification Period in Full Test Mode

Meets the requirements of the ANSI/ESD S4.1 testing requirements.

• Temperature (Fahrenheit and Celsius) and Relative Humidity Measurements

Measures temperature and relative humidity (during 15 second electrification period) as required by ANSI/ESD S20.20.

• NIST Calibrated with Certificate

Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on calibration of Vermason products, see Calibration.
