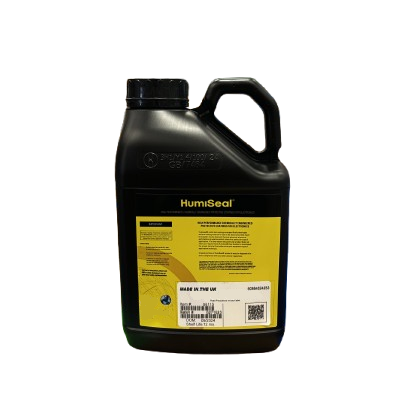

HUMISEAL 1A27 polyerethane conformal coating 5lt

HumiSeal 1A27 Polyerethane conformal coating 5lt

HumiSeal® 1A27 Conformal Coating is a one component, polyurethane coating that is widely used for circuit board applications.

It contains no free isocyanates and can be applied by spraying, brushing, or dipping methods.



Application of HumiSeal® 1A27
Cleanliness of the substrate is of extreme importance for the successful application of a conformal coating.
Surfaces must be free of moisture, dirt, wax, grease, flux residues and all other contaminants. Contamination under the coating could cause problems that may lead to assembly failures.
Dipping
Depending on the complexity, density and configuration of components on the assembly, it may be necessary toreduce the viscosity of HumiSeal® 1A27 with HumiSeal® Thinner 521 in order to obtain a uniform film. Once optimum viscosity is determined, a controlled rate of immersion and withdrawal (5-15 cm/min) will further ensure even deposition of the coating and ultimately a uniform film. During the application, evaporation of solvent causes an increase in viscosity that should be adjusted by adding small amounts of HumiSeal® Thinner 521. Viscosity in the dip tank should be checked regularly, using a simple measuring device such as a Zahn or Ford viscosity cup.



Spraying
HumiSeal® 1A27 can be sprayed using conventional spraying equipment. Spraying should be done in an environment with adequate ventilation so that the vapour and mist are carried away from the operator. The addition of HumiSeal® Thinner 521 is necessary to ensure a uniform spray pattern resulting in pinhole-free film. The amount of thinner and spray pressure will depend on the specific type of spray equipment used and operator technique. The recommended ratio of HumiSeal® 1A27 to HumiSeal® Thinner 521 is 1:1 by volume; however the ratio may need to
be adjusted to obtain a uniform coating.
Brushing
HumiSeal® 1A27 may be applied by brush with a small addition of HumiSeal Thinner 521. Uniformity of the film depends on component density and operator's technique.
Storage
HumiSeal® 1A27 should be stored away from excessive heat or cold, in tightly closed containers. HumiSeal® products may be stored at temperatures of 0 to 35°C. Prior to use, allow the product to equilibrate for 24 hours at a room temperature of 18 to 32°C
