JBC - CDE-2BQA STAZIONE SALDANTE 230V CON

JBC - CDE-2BQA DIGITAL SOLDERING STATION WITH SOLDERING ASSISTANT. IDEAL FOR SOLDERING SMD. T245 GENERAL PURPOSE HANDLE INCLUDED (CARTRIDGE NOT INCLUDED).

Codice produttoreCDE-2BQA

Tempistiche spedizione non aggiornate. Richiedi quotazione

Quantità a stock: 0

675,00 €IVA esclusa

Risorse

Documenti del prodotto B43707

Non sono ancora presenti schede tecniche, scrivici per avere maggiori informazioni sul prodotto

B43707

Approfondimento

JBC - CDE-2BQA Stazione Saldante 230V con impugnatura T245

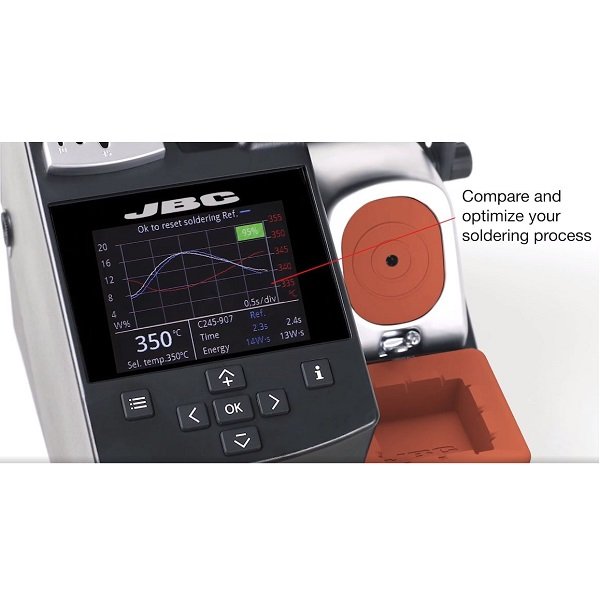

JBC innovates CDE station with Soldering Assistant, the first system that measures the delivered energy during the soldering process.

The Soldering Assistant will help to improve the soldering skills, to select the optimal temperature and cartridge and to have a more efficient and quality production.



This station is deal for general soldering applications.

• Provides the best soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer.

• Complete Tip Cleaning System with an antisplash membrane to keep the work area clean and integrated wiper to remove excess solder from the tip.

• Cartridge Holder and JBC Exclusive Cartridge Exchanger, that facilitates fast and safe cartridge changes. • Possible connection to the JBC Fume Extractor (connector RJ12).

• Connectivity: datas download, software updates, traceability.

• Includes T245 General Purpose Handle that works with our C245 Cartridge Range.



SPECIFICATIONS:

  • Selectable Temperature: 90 to 450 ºC / 190 to 840 ºF
  • Peak power: 150 W - 23.5 V
  • ESD safe: Meet ANSI/ESD S20.20-2021
  • Tip to ground resistance: <2 ohms
  • Tip to ground voltage: <2 mV RMS
  • CONNECTIVITY: USB-B Software PC / Firmware update



PRODUCT COMPOSITION:

  • 1 CDE Soldering Station
  • 1 T245 General Purpose Handle that works with our C245 Cartridge Range (cartridge not included)

video stazione CDE-2BQA
